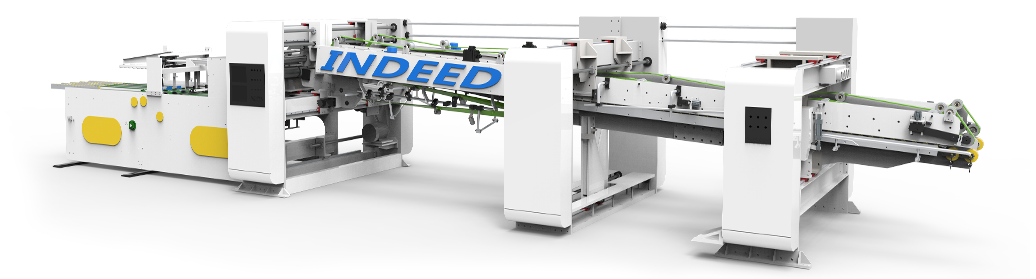

DOWNWAD FOLDER INLINE TYPE A

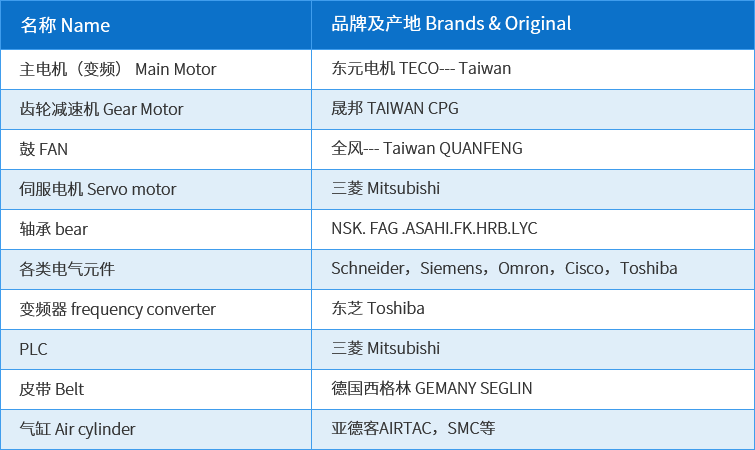

MACHINE CONFIGURATION

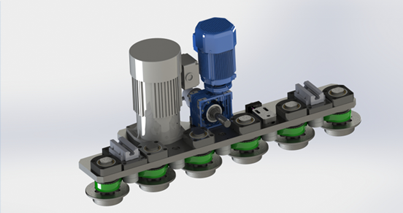

POLLING GLUE UNIT

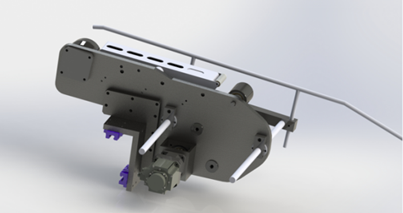

  • ROLLING GLUE UNIT

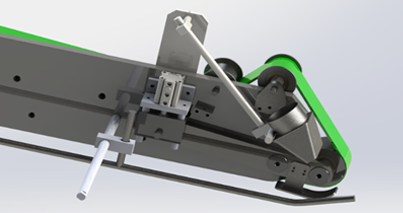

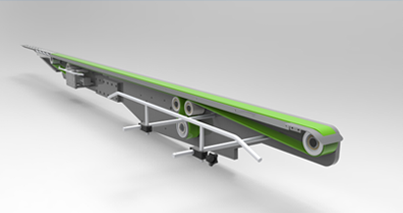

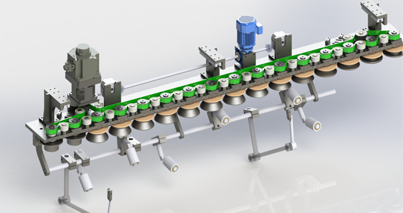

FOLDING UNIT

  • ①刚性强,稳定性好的高精度折叠梁适合高速行驶。
    RIGID STRENGTH ,STEADY FOLING BEAM , COMFORT FOR HIGH SPEED RUNNING

  • ②每侧折梁有多组成型轮,能更好的控制纸箱的成型。
    EVERY BEAM SIDE HAS CORRECT WHEEL,TO ENSURE CARDBOARD SHAPING

  • ③中间龙门结构,更好的改善折梁在高速运行时的稳定性。
    GANTRY STRUCTURE,TO ENSURE HIS STABLE WHEN HIGH SPEED RUNNING

  • ④折梁中部有90°整形轮,控制折弯角度
    IN THE MIDDLE OF FOLDING BEAM,THERE’S CORRECT WHEEL TO CONTROL THE FOLDING ANGLE

  • ⑤下皮带通过电机控制可单独控制速度差,用以矫正纸板剪刀差
    LOWER BELT THROUGH MOTOR CONTROL THE SPEED DIFFERENCE,TO CORRECT THE SCISSORS DIFFERENTIAL.

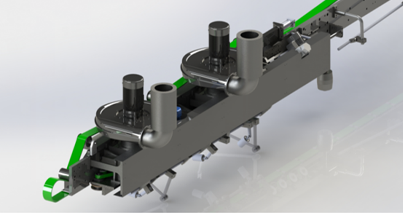

  • ⑥主皮带采用吸风带传送,防止纸板滑动歪扭。
    MAIN BELT ADOPT SUCTION CONVEYOR,TO AVOID CARDBOARD

Running Part

① 所有同步带传动结构简单,噪音低,运转平稳,振动小
ALL THE SYNCHRONIZATED BELT CONVEYOR STRUCTURE SIMPLE,LOW NOISE ,STEADY,LOW VIBRATION
② 活动部件采用丝杠和直线导轨
MOVING PART ADOPT LEAD SCREW AND LINEAR GUIDE RAIL

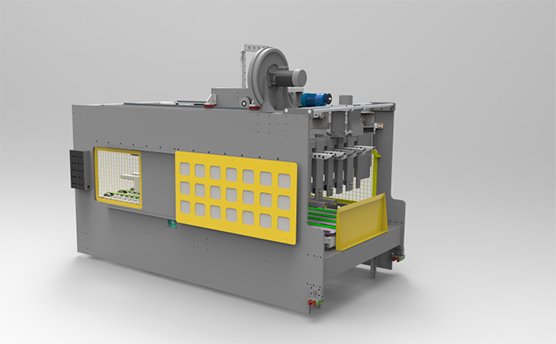

COUNTING STACKER AND OUT UNIT

①光电传感器精确计数,高速运行时完成精确计数
PHOTOSESOR COUNTING ACCURATE, HIGH SPEED RUNNING TO ACHIVE COUNTING ACCURATE
②高速精准控制堆叠数量
ACCURATE CONTROL STACKER QUANTITY
③按照堆叠设定张数由气动推板推出
CARTON OUT BY AIY CYLINDER BOARD
④可随时调整方向的强大风压防止纸箱弯翘
ADJUST WIND PRESSURE AT ANY TIME ,TO AVOID BOX CURVING
⑤底板电动移动调整(自动或手动)根据箱子的规格
BASEBOARD MOVMENT BY ELECTRICAL ,DEPAND ON BOX SIZE

Note: Product parameters are changed and the organization is improved without notice.
