Home>Products>HIGH SPEED AUTO FOLDER GLUER

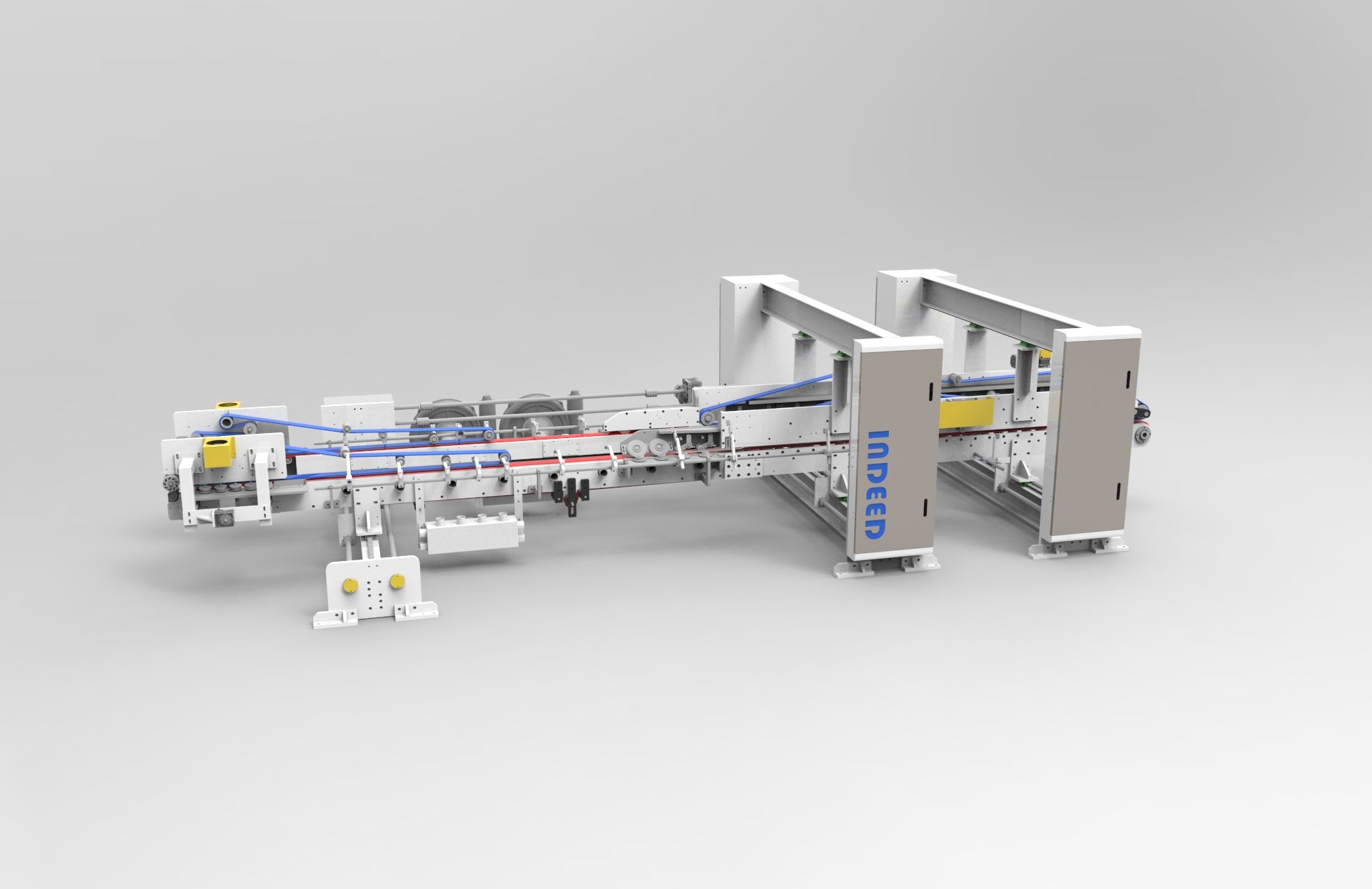

HIGH SPEED AUTO FOLDER GLUER

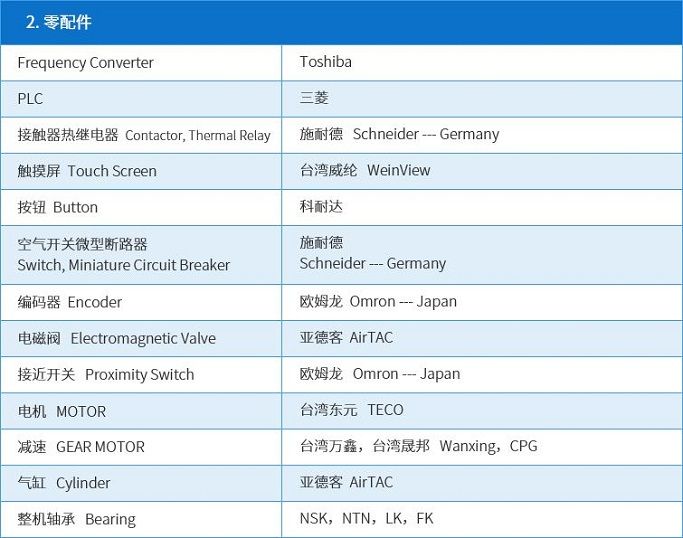

MACHINE CONFIGURATION

POLLING GLUE UNIT

  • 送纸部 FEEDING UNIT
    皮带吸风送纸SUCTION BELT FEEDING UNIT
    1.THE PAPER FEEDING SIDE DOOR BAFFLE CAN AUTO MOVES TO THE LEFT AND RIGHT.THE BACK PLATE IS MOVABLE (BACK AND FORTH),BY ELECTRIC ADJUSTMENT,WHICH CAN ADUST THE DIFFERENT CARTON SPEC ONL

FOLDING UNIT

  • 1.纸板左右折合线位配压线轮、有效补偿和修正开槽工序的折线不到位现象。可对纸板进行再次压线,提高纸箱成型效果。 CARDBOARD FOLDING BEAM WITH THREE PRESSURE WHEELS, IMPROVE THE BULGING PHENOMENON OF PAPERBOARD.

  • 折合成型部 FOLDING BEAM UNIT

  • 2.上皮带采用独立电机驱动,调节差速,控制纸箱成型效果。 THE UPPER BELT THROUGH MOTOR CONTROL THE SPEED DIFFERENCE,TO CORRECT THE SCISSORS DIFFERENTIAL.

  • 3.加强型上梁,更好的控制高速运行时的震动。 THE REINFORCED UPPER BEAM CAN BETTER CONTROL THE VIBRATION DURING HIGH-SPEED OPERATION.

Running Part

COUNTING STACKER AND OUT UNIT

计数部 COUNTING OUT UNIT

高速精准控制堆叠数量
ACCURATE CONTROL STACKER QUANTITY
按照堆叠设定张数由气动推板推出
CARTON OUT BY AIY CYLINDER BOARD
底板电动移动调整(自动或手动)根据箱子的规格
BASEBOARD MOVMENT BY ELECTRICAL ,DEPAND ON BOX SIZE

Note: Product parameters are changed and the organization is improved without notice.
