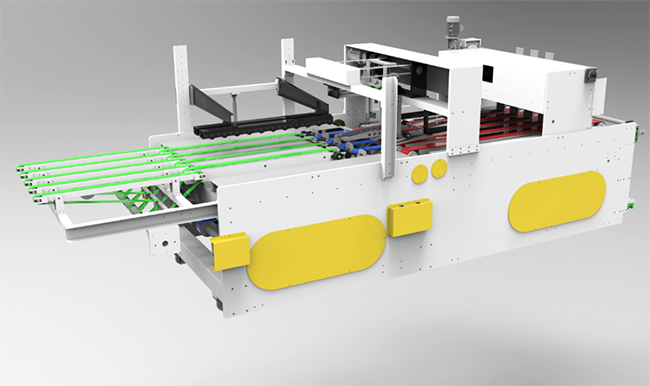

FULL SERVO FOLDER GLUER INLINE-DOWNWARD FOLDER

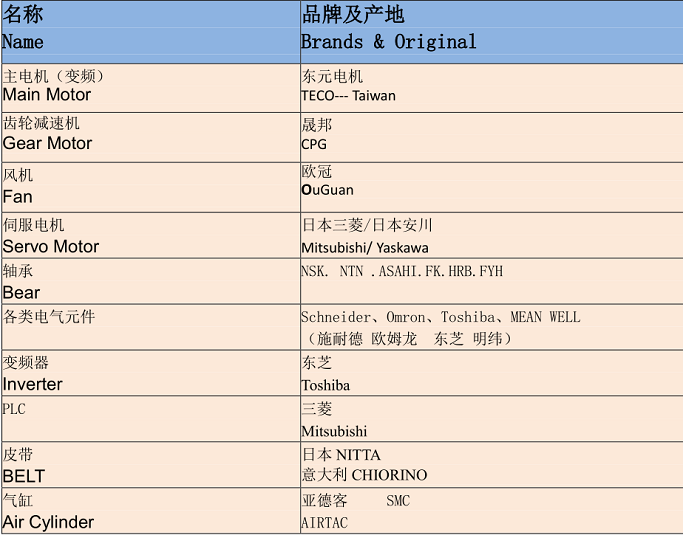

MACHINE CONFIGURATION

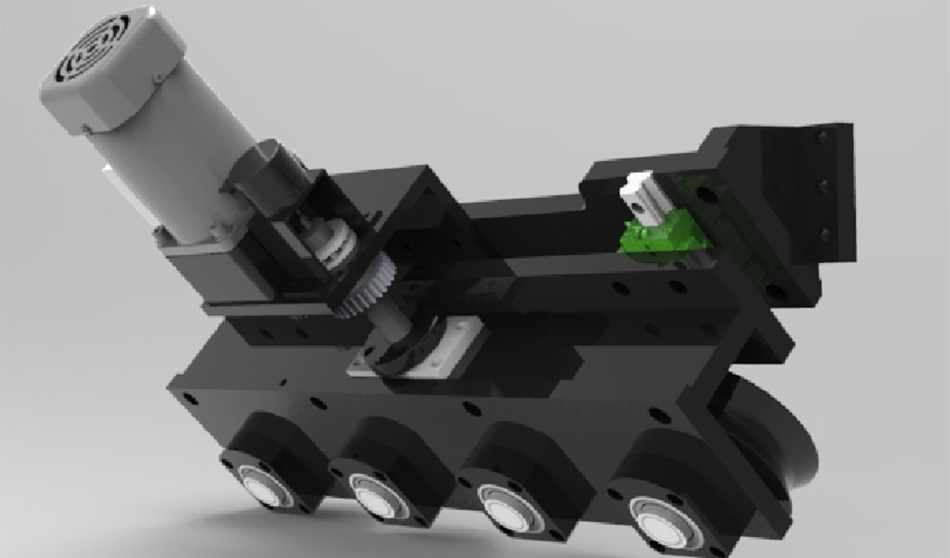

POLLING GLUE UNIT

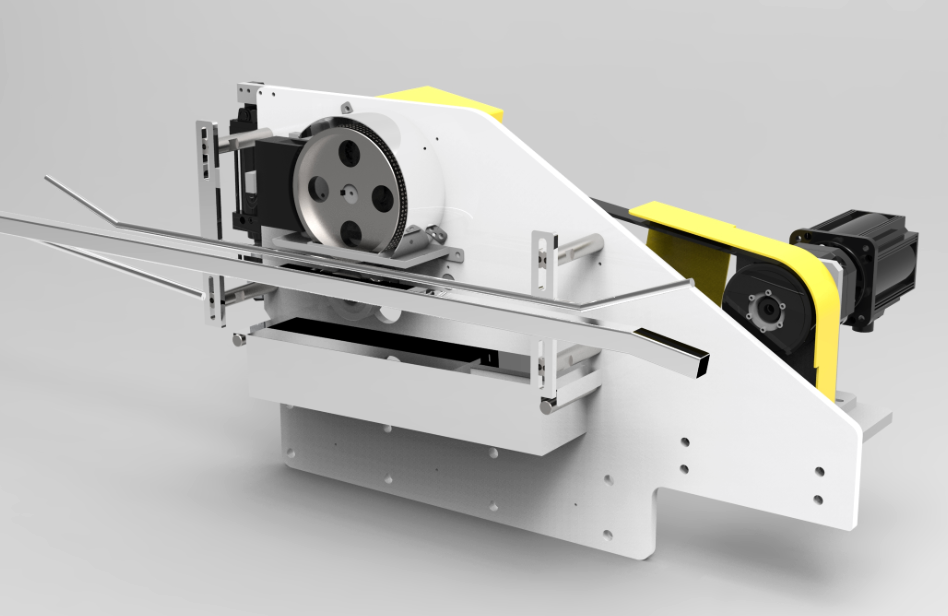

SPRAY GLUE UNIT

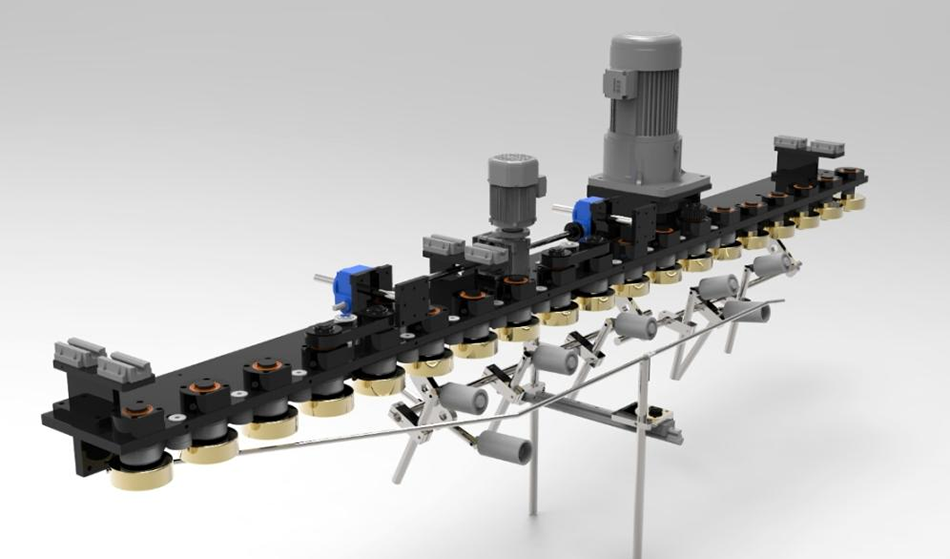

FOLDING UNIT

1. 根据纸板厚度，接纸入口有微调装置，确保印刷机出来的纸板能完全贴合的进入折梁
PAPER FEED MOUTH’S ROLL SUPPORTED BY SPRINGENSURE CARTON CLOSE TOGETHER GO INTO FOLDING UNIT.
2.前段下折梁皮带设计，高速运行时杜绝纸板打滑现象。
LOWER BELT THROUGH SERVO CONTROL THE SPEED DIFFERENCE,TO CORRECT THE SCISSORS DIFFERENTIAL.
3.刚性强，稳定性好的高精度折叠梁适合高速行驶。
RIGID STRENGTH ,STEADY FOLING BEAM , COMFORT FOR HIGH SPEED RUNNING
4.折梁中部有90°整形轮，控制折弯角度
N THE MIDDLE OF FOLDING BEAM,THERE’S CORRECT WHEEL TO CONTROL THE FOLDING ANGLE
5.后端传送采用吸风带传送，防止滑动形成剪刀叉
SUCTION CONVEYOR,AVOID SCISSORS DIFFERENTIAL
6.主皮带采用吸风带传送，防止纸板滑动歪扭。
MAIN BELT ADOPT SUCTION CONVEYOR,TO AVOID CARDBOARD

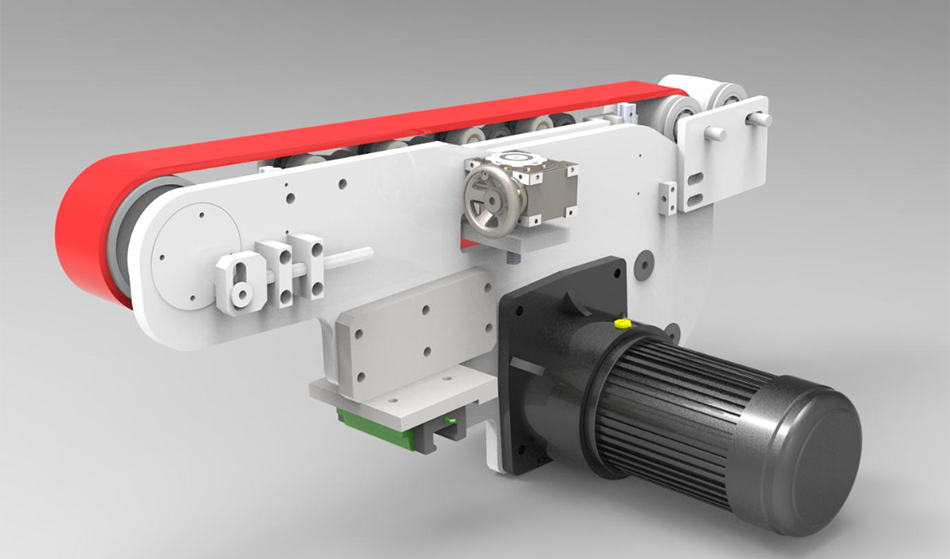

Running Part

① 所有同步带传动结构简单，噪音低，运转平稳，振动小
ALL THE SYNCHRONIZATED BELT CONVEYOR STRUCTURE SIMPLE,LOW NOISE ,STEADY,LOW VIBRATION
② 活动部件采用丝杠和直线导轨
MOVING PART ADOPT LEAD SCREW AND LINEAR GUIDE RAIL.

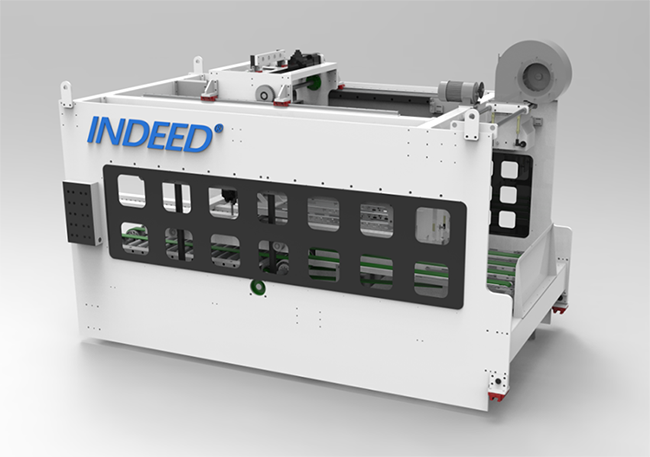

COUNTING STACKER AND OUT UNIT

①全伺服控制在高速运行时完成精确计数，堆码和排出
ALL SEVER MOTOR CONTROL HIGH SPEED RUNNING TO ACHIVE COUNTING ACCURATE, CARTON OUTPUT
②预压风机可随时调整方向，强大风压防止纸板向上弯曲
ADJUST WIND PRESSURE AT ANY TIME ,TO AVOID BOX CURVING

Note: Product parameters are changed and the organization is improved without notice.
